| Model |
SRX300
|
SRX320
|

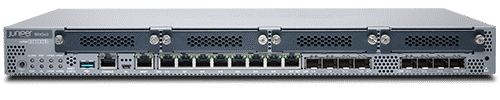

SRX340
|
SRX345
|
SRX380
|
| Detail | |||||
|
Firewall performance (max)
|
1.9Gbps |
1.9Gbps |
4.7Gbps |
5Gbps |
20Gbps |
|
IPS performance
|
200Mbps |
200Mbps |
400Mbps |
600Mbps |
2.0Gbps |
|
VPN performance
|
336Mbps |
336Mbps |
733Mbps |
977Mbps |
4.4Gbps |
|
Maximum concurrent sessions
|
64,000 |
64,000 |
256,000 |
375,000 |
380,000 |
|
New Sessions/second (sustained, TCP, 3-way)
|
5000 |
5000 |
10,000 |
15,000 |
50,000 |
|
Maximum security policies
|
1,000 |
1,000 |
2,000 |
4,000 |
4,000 |
|
Maximum security intelligence data feed entries in firewall rules database
|
N/A |
N/A |
N/A |
N/A |
N/A |
|
Total Onboard Ports
|
8x1 GbE |
8x1 GbE |
16x1 GbE |
16x1 GbE |
20 |
|
MACsec-capable Ports
|
2x1 GbE |
2x1 GbE |
16x1 GbE |
16x1 GbE |
1GbE x 16 |
|
PoE+ Ports
|
0 |
6 |
0 |
0 |
16 |
|
Mini PIM Slots
|
0 |
2 |
4 |
4 |
4 |
